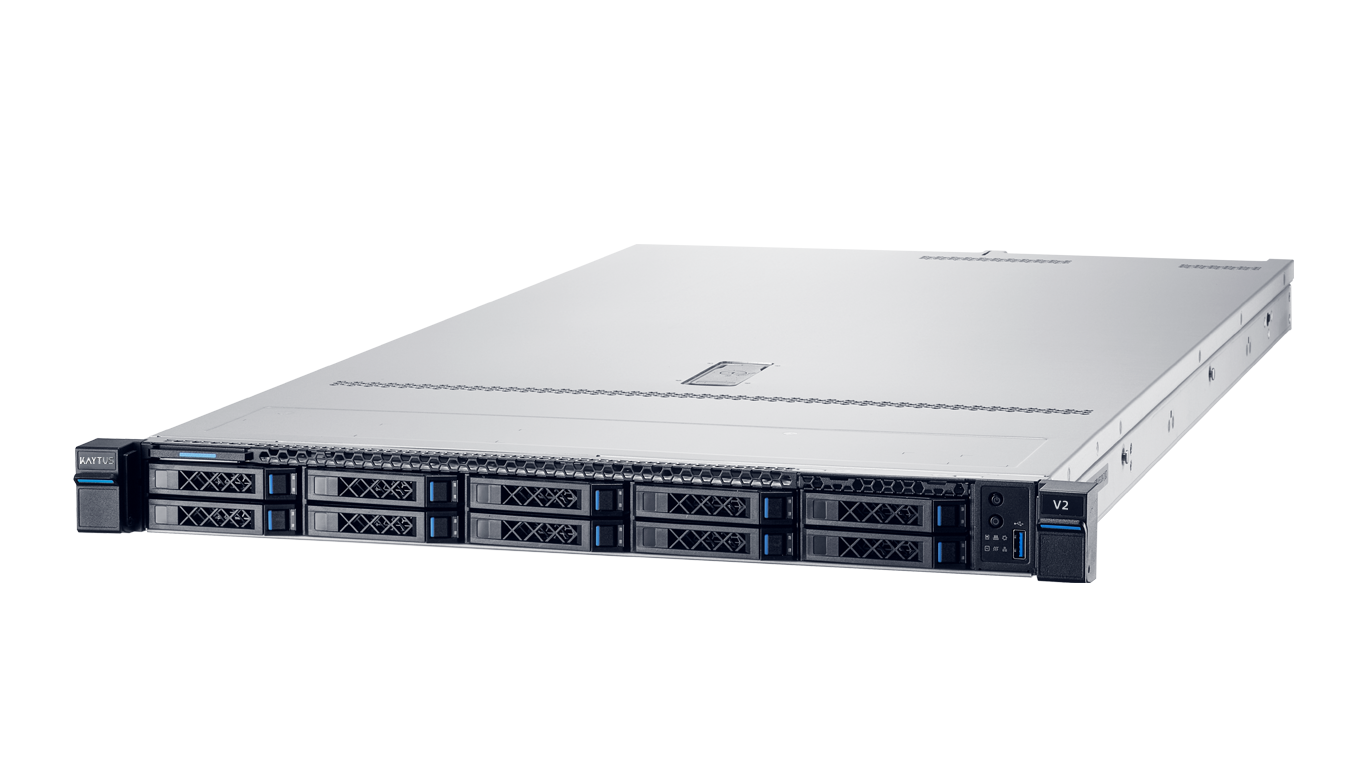

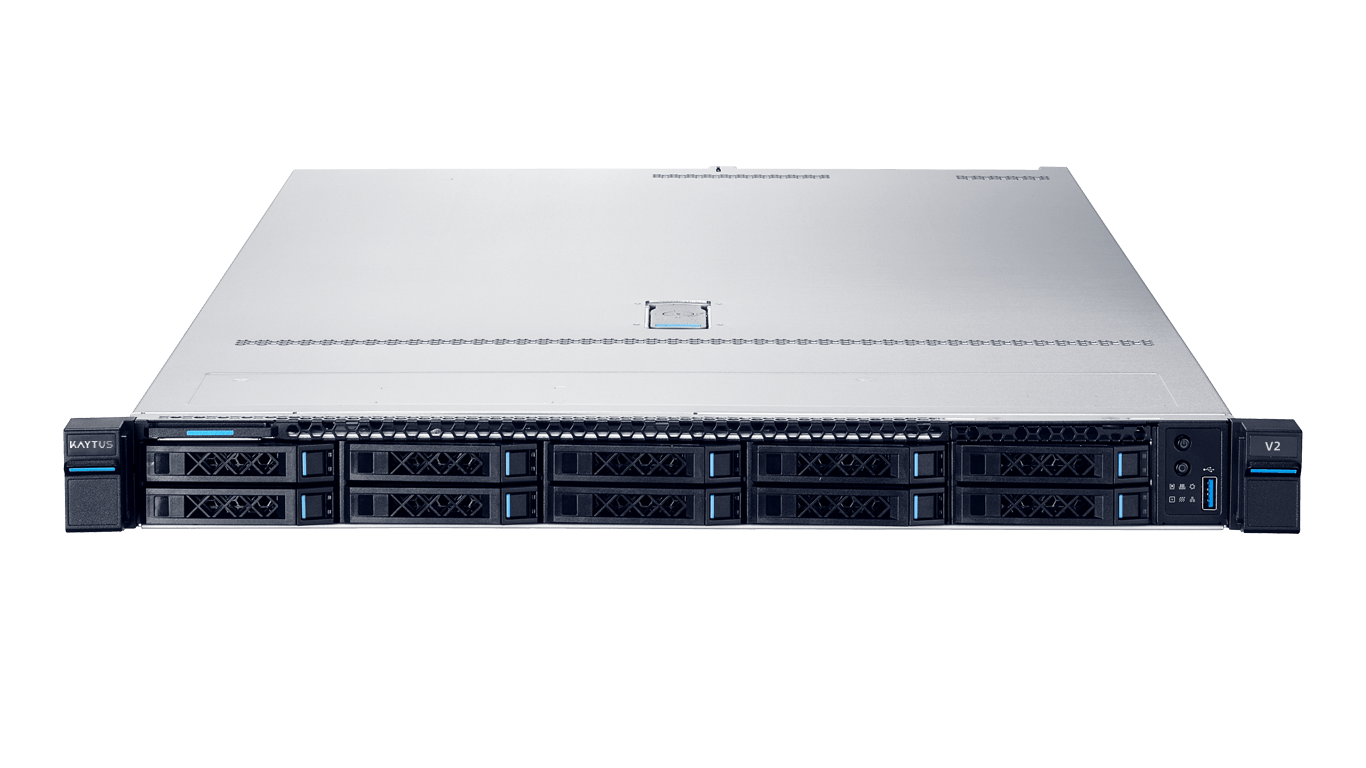

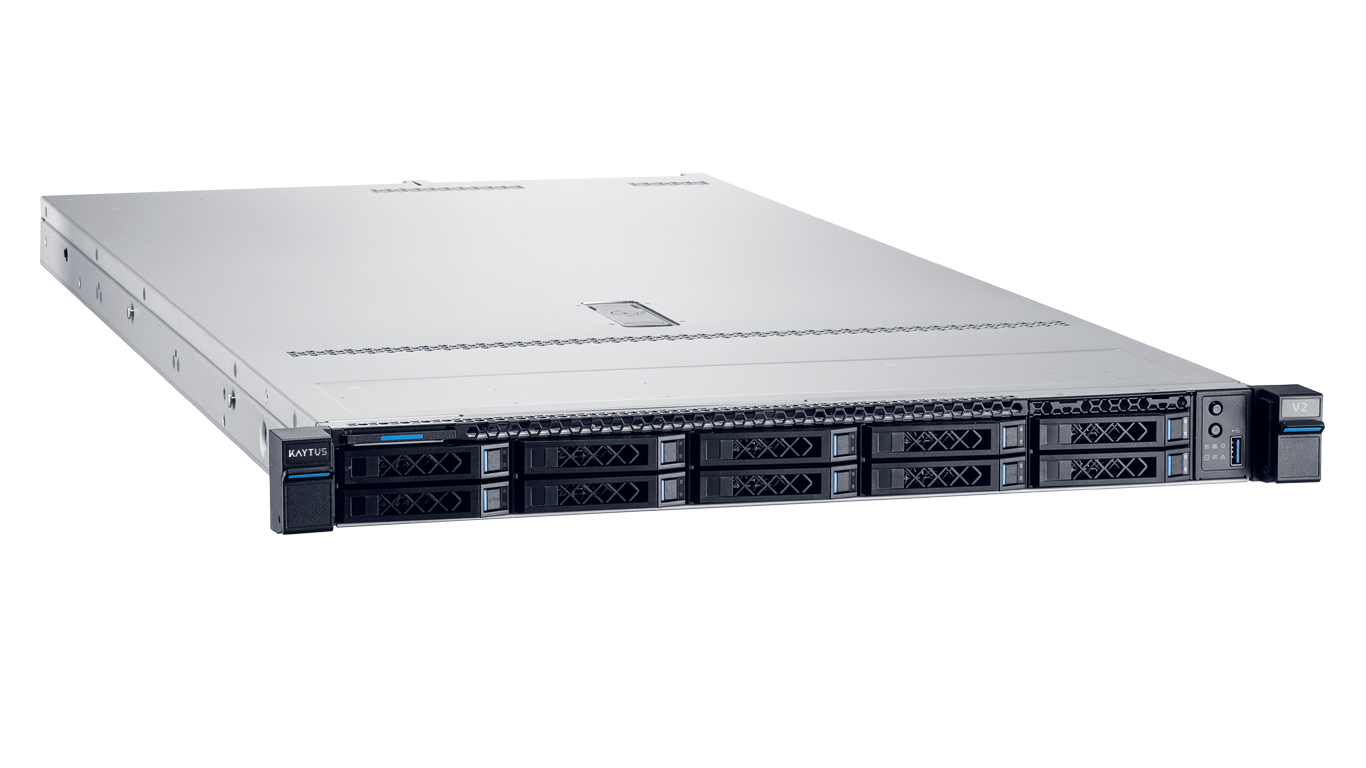

KAYTUS KR1280V2 AMD model is a high-density computing rack server that equipped with 4th Generation AMD EPYC™ processors. With flexible scaling, high performance computing and excellent operational efficiency, KR1280V2 can meet a variety of complex workloads, maintaining the consistent high quality and high performance of KAYTUS Server to meet the needs of various industries, and is particularly suitable for application scenarios such as high performance computing and virtualization.
User-friendly design, the system can realize the tool-free maintenance. The enhanced and optimized architecture design enables simple assembly/disassembly and greatly reduces O&M time
Unique intelligent regulation technology is combined with advanced air cooling system to create an optimum working environment and ensure the server lifecycle health

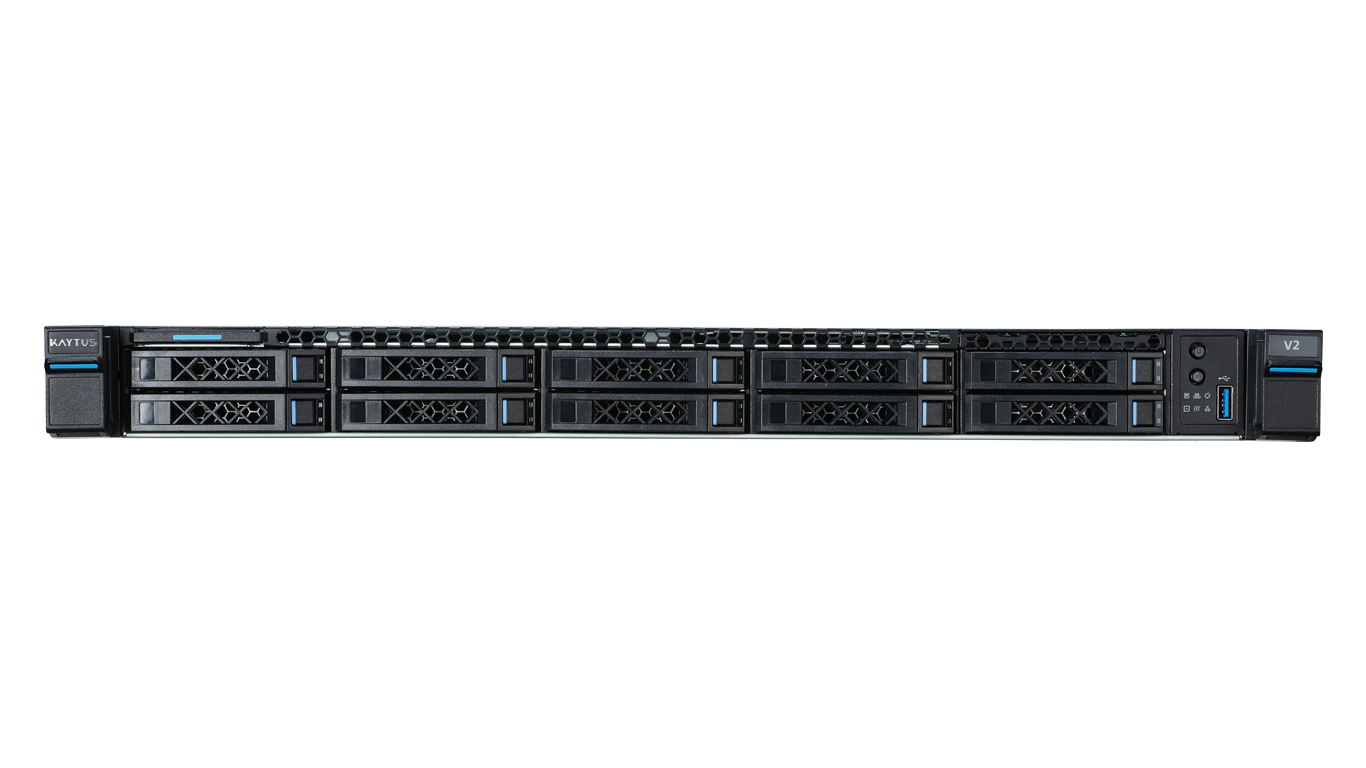

Supports up to 4x 3.5-inch drives and 4x 2.5-inch drives , or up to 12x 2.5-inch drives
Supports 2x hot-swappable OCP3.0 slots with multiple network port options, delivering a more flexible network architecture to applications
Supports up to 3/2x slots of standard Gen5 PCIe, further enhancing I/O performance
Supports optional internal SATA/NVMe M.2 SSD modules for diverse storage demands
Equipped with 4th Generation AMD EPYC™ processors, supports up to 128 cores and 256 threads per CPU, up to 400W TDP, a maximum turbo frequency of 4.4GHz, up to 1150MB L3 cache
Supports up to 24x DIMMs of DDR5 memory modules (RDIMMs and 3DS RDIMMs), offering a maximum 6TB to deliver high speed and superior availability
Item | Description |
Form Factor | 1U rack server |
Processor | Up to one or two 4th Generation AMD EPYC™ processors Up to 128 cores 1150MB L3 cache per CPU Up to 400W TDP |
Memory | Up to 24x DDR5 DIMMs 12x DDR5 memory channels per processor, and up to 4800MHz RDIMMs and 3DS RDIMMs supported |
Storage | Front 4x 3.5-inch + 4x 2.5-inch SATA/SAS/NVMe drives 4x 3.5-inch SATA/SAS/NVMe drives +2x E1.S + 2x M.2 SSDs 10/12x 2.5-inch SATA/SAS/NVMe drives Internal 2x SATA M.2 SSDs or 2x PCIe M.2 SSDs |
I/O Expansion Slot | KR1280-E2-A0-R0-00 supports up to 3x PCIe Gen5 slots and 2x hot-swappable OCP3.0 slots KR1280-E2-C0-R0-00 supports up to 2x PCIe Gen5 slots and 2x hot-swappable OCP3.0 slots |
Interface | Front 1x USB 2.0 port, 1x USB 3.0 port, 1x VGA port Rear 2x USB 3.0 ports, 1x VGA port, 1x BMC management network port, 1x micro USB port |
Fan | 8x hot-swap fans with N+1 redundancy |
PSU | 550W/800W/1300W/1600W/2000W CRPS standard PSUs with 1+1 redundancy. |
System Management | Integrated with 1x independent 1000 Mbps network port, dedicated for IPMI remote management |
Security | TPM 2.0, TCM, BMC/BIOS chip-level redundancy, power capping, etc. |
Operating System | Microsoft Windows Server, Red Hat Enterprise, SUSE Linux Enterprise Server, etc. |
Dimensions. (W × H × D) | 438mm × 43mm × 800/850mm |
Weight | Full configuration: ≤30 kg (For details, please refer to the White Paper) |
Operating Temperature | 10°C to 35°C (For details, please refer to the White Paper) |
